Solar Powered Automatic Chicken Coop Door with APP Control

Solar Automatic Chicken Coop Door — Light Sensor + Timer + App Control

Keep your flock safe on autopilot. This solar-powered, roll-up chicken coop door opens at sunrise and closes after dusk—or exactly when you schedule it. A built-in anti-pinch system protects hens while closing. Control it from the onboard panel, the Bluetooth mobile app, or the included remote. Weatherproof housing and an aluminium roll panel handle Aussie rain, frost and dust without fuss.

Why chicken keepers love it

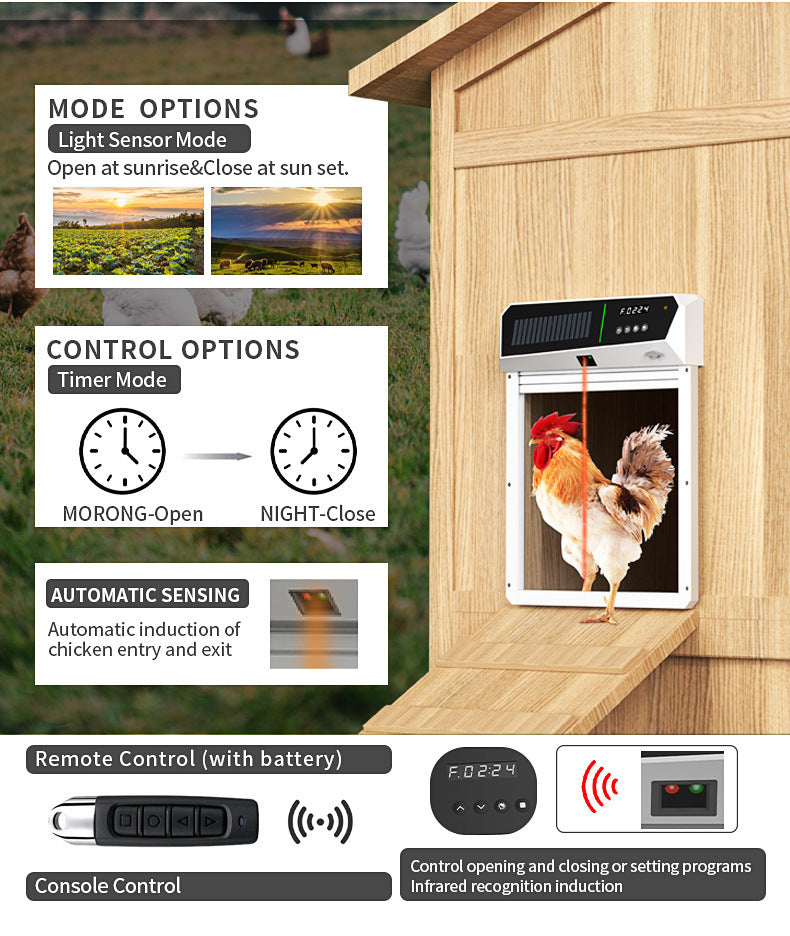

• 3 smart modes

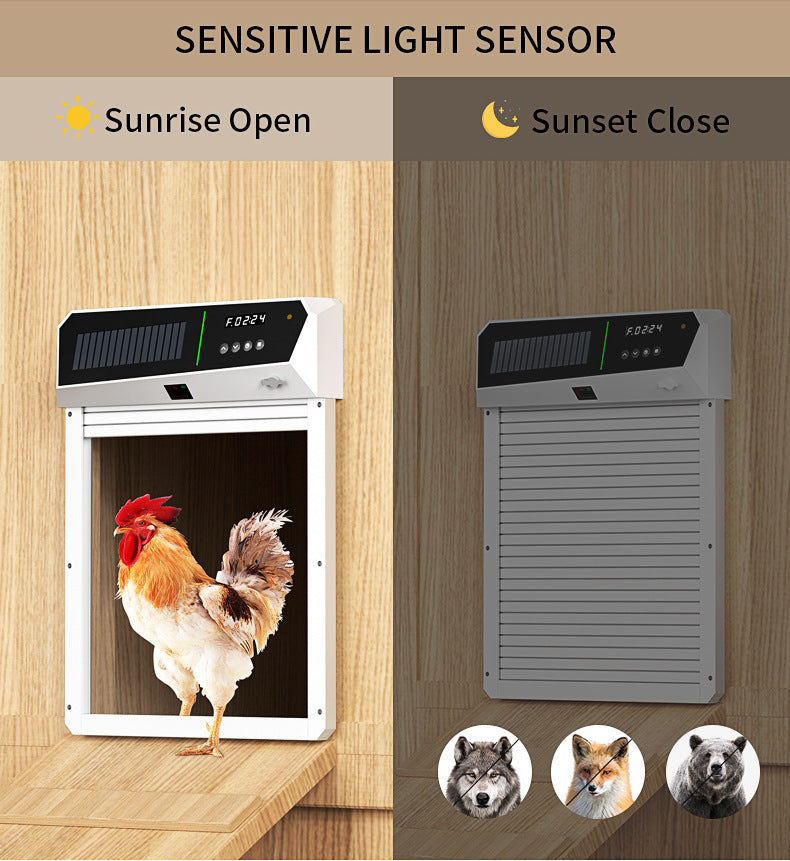

  • Light Mode — opens at sunrise, closes at sunset (≈300 LUX threshold).

  • Timer Mode — set your own open/close times on a 24-hour clock.

  • Intelligent (Hybrid) Mode — uses ambient light around dusk and force-closes 30 minutes after your set time for reliable lock-ups.

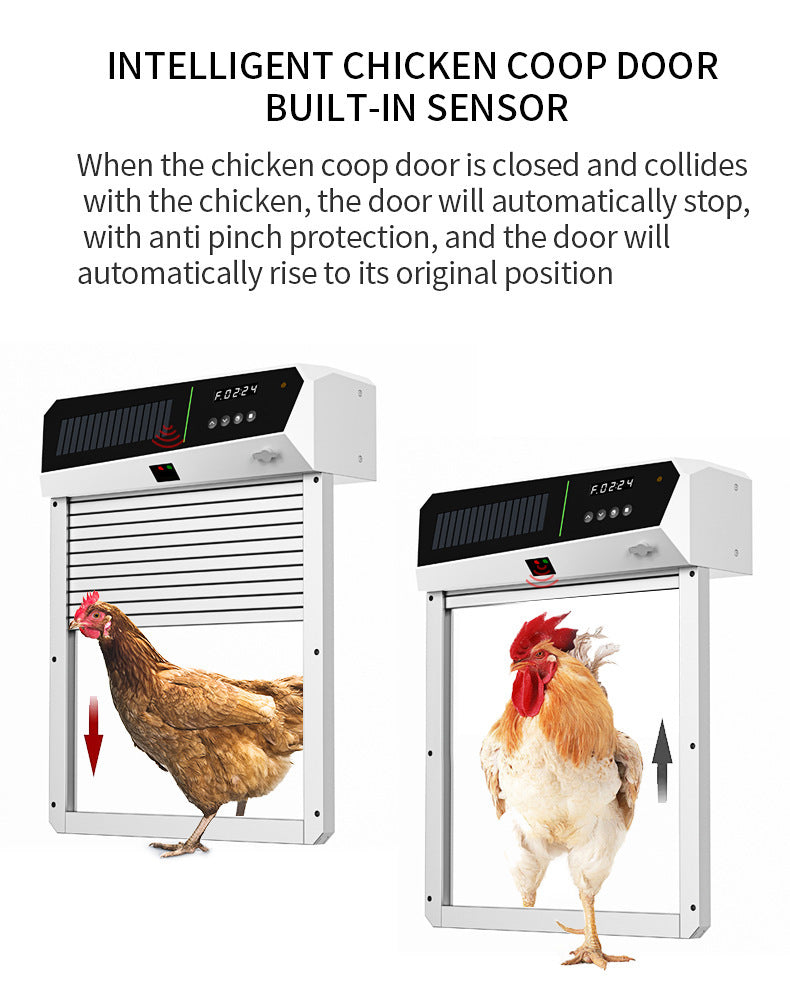

• Anti-pinch safety — if a bird is underneath while closing, the door auto-reverses and retries after ~20 seconds.

• Solar + USB charging — integrated solar panel plus 5 V/0.5 A DC charging; status LEDs show charge and low-power states.

• Manual override anytime — one-touch open/close from the front panel; remote/app work whenever the unit is powered on.

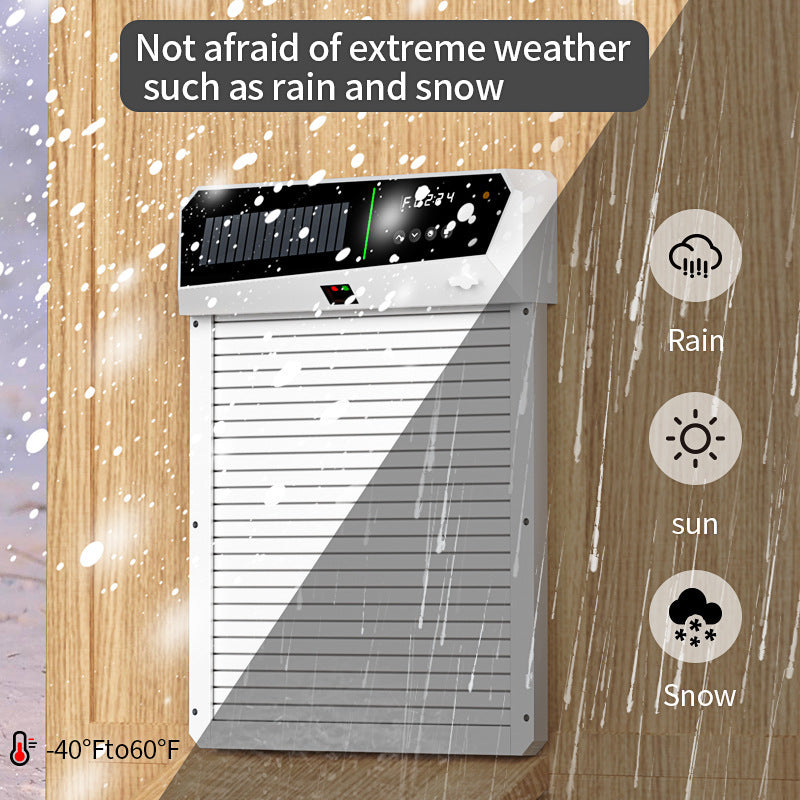

• All-weather build — sealed electronics and aluminium roll-up panel;

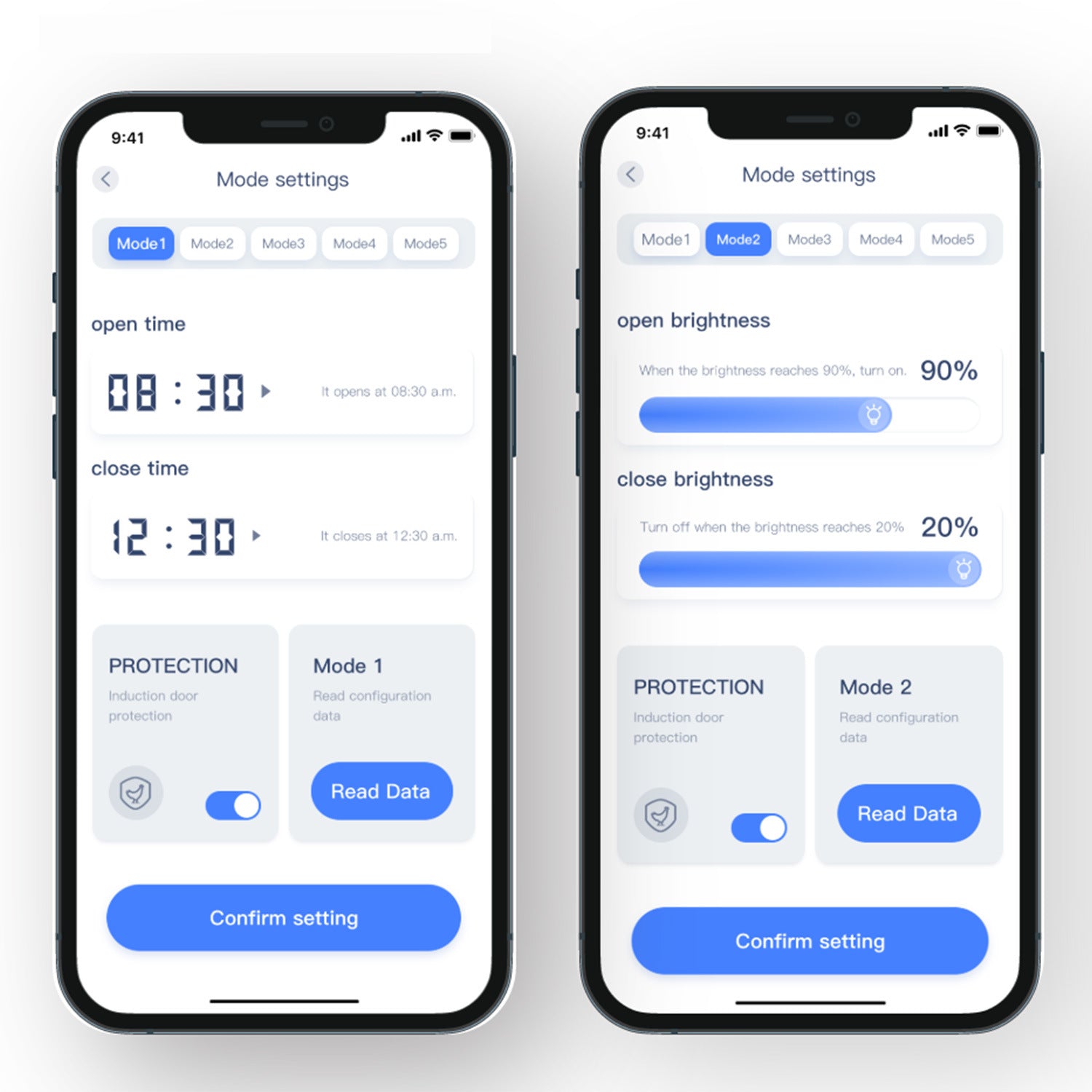

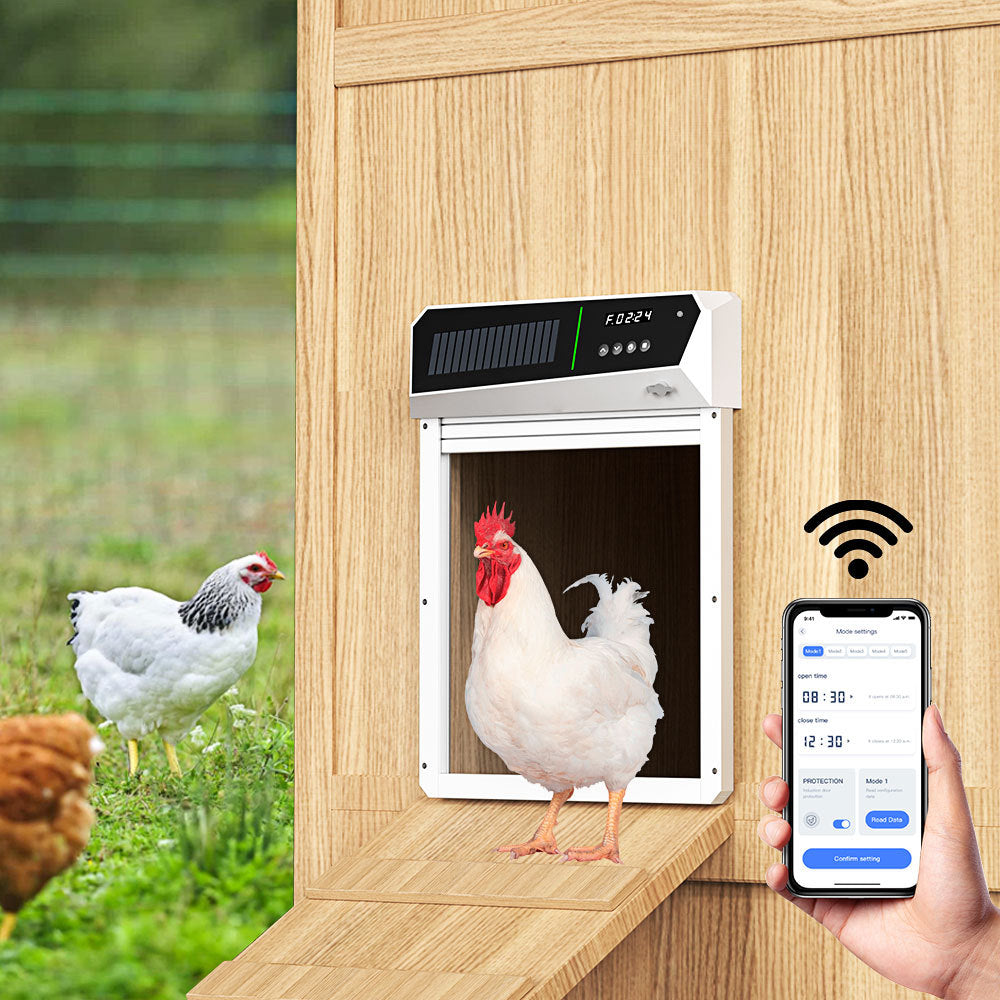

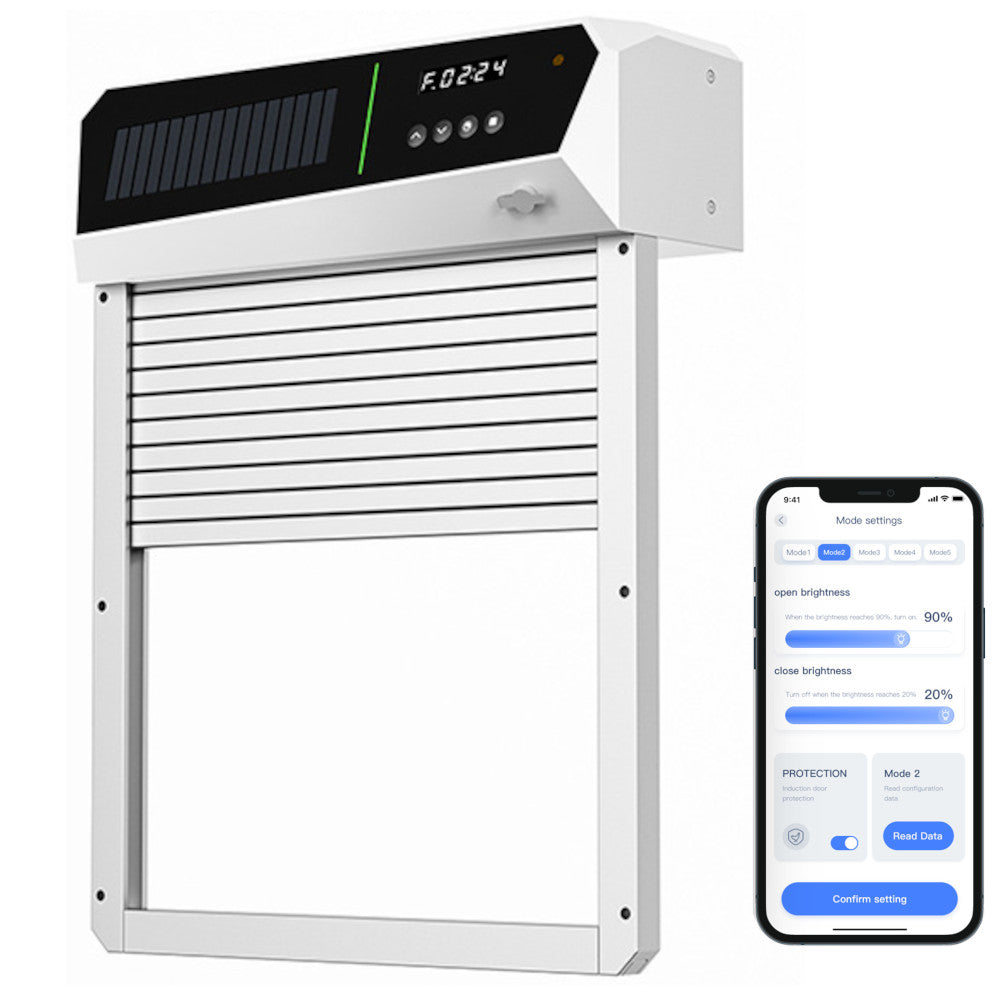

App control (Bluetooth)

Pair the door in the app to:

• set the clock and open/close schedules

• switch between Light / Timer / Intelligent modes

• enable/disable protection (anti-pinch) mode

• open/close the door from your phone
  You can also remove/re-add the device when changing coops or phones.

Key specs

• Doorway cut-out (recommended): 33.5 × 27.4 cm (13.2″ × 10.78″)

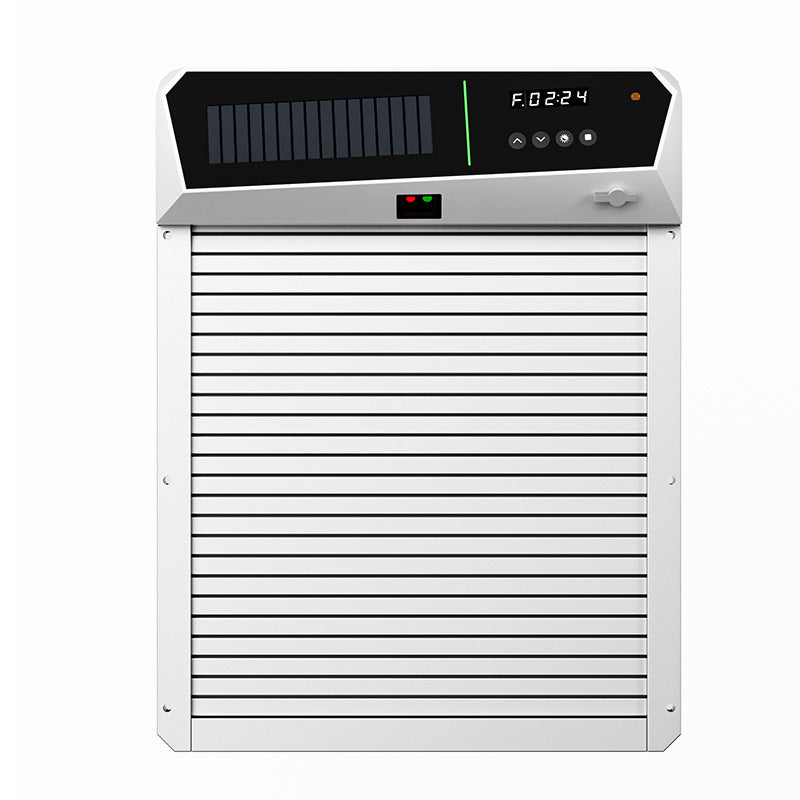

• Overall unit size: 35.3 × 27.0 × 11.0 cm (13.89″ × 10.62″ × 4.35″).

• Battery: high-capacity rechargeable 5000 mAh

• Charging: 5 V ⎓ 0.5 A DC + integrated solar panel

• Modes: Light / Timer / Intelligent (hybrid)

• Safety: anti-pinch auto-reverse, low-power indicator, status LEDs

• Materials: ABS + PC housing; aluminium roll panel

What’s in the box

• Solar automatic coop door unit

• Remote control

• DC charging cable

• Mounting screws

• User manual

5-minute setup

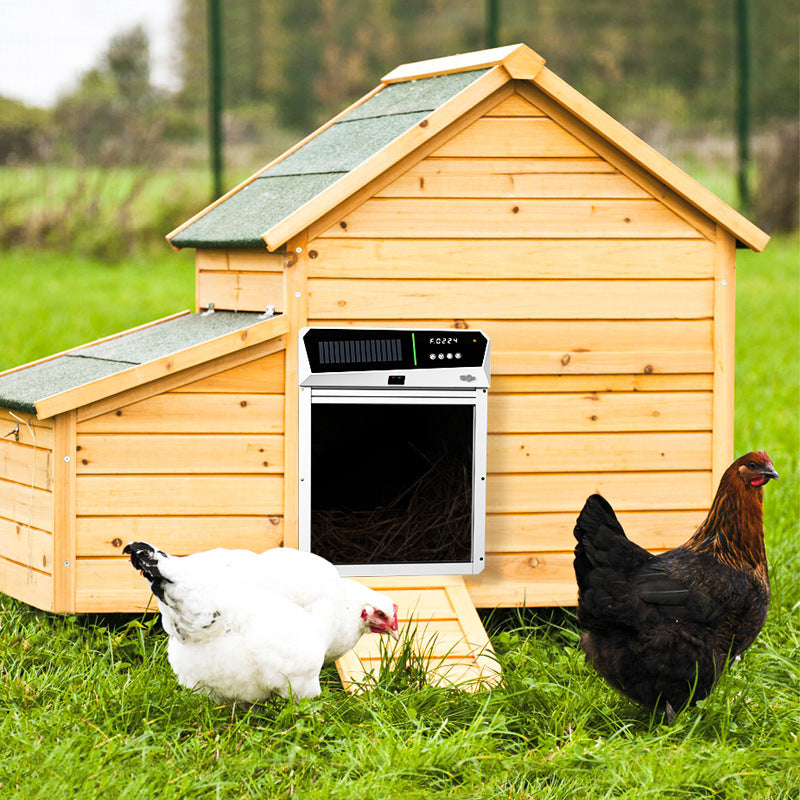

1. Mount horizontally over your coop opening with the included screws. Keep the light sensor and solar panel unobstructed.

2. Power on and set the current time.

3. Set Open and Close times (must be at least 30 minutes apart).

4. Choose Light, Timer, or Intelligent mode.

5. Test Manual Open/Close via panel buttons, remote, or the app.

Pro tips:

• In shaded runs or where yard lights stay on at night, use Timer or Intelligent mode.

• Keep the sensor window clean for consistent sunrise/sunset detection.

FAQs

Will it crush a chicken?
No. The anti-pinch system reverses on contact and tries again later.

Does it work without sun?
Yes. Solar provides top-ups, and you can charge directly via 5 V/0.5 A DC.

How does sunrise/sunset detection work?
The sensor reacts to ambient light (around 300 LUX). If your site has unusual lighting, switch to Timer or Intelligent mode.

Why won’t my times save?
Open and Close must be ≥ 30 minutes apart. Increase the gap and save again.
